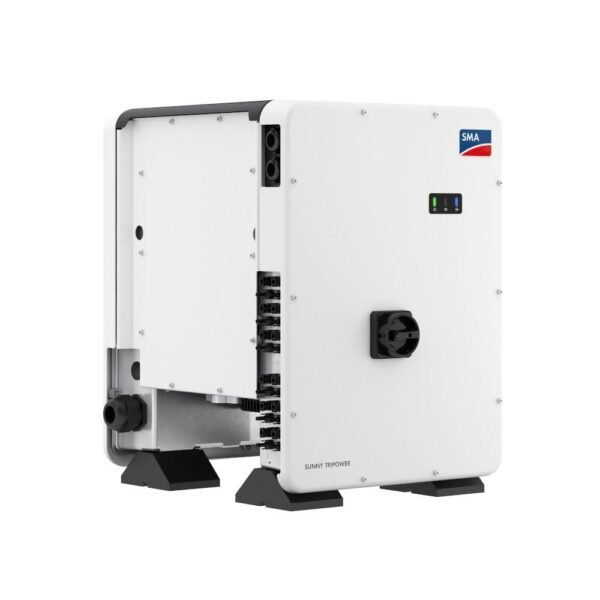

SMA CORE1 50kW
Sunny Tripower CORE1
The Sunny Tripower CORE1 is the world’s first free-standing string inverter for decentralized rooftop and ground-based PV systems as well as covered parking spaces.
- Floor-mounted device easy to install
- No DC fuses required
- 6 independent MPPTs, 12 Strings input
- Up to 150% DC:AC ration: max 75kWp solar generator
- SMA ShafeFix, SMA Smart Connected
- Arc-fault circuit interrupter and I-V curve diagnoses
Description
Up to 60% faster installation of commercial PV systems
Sunny Tripower CORE1
50kW
Scalability for maximum energy yields
- With a capacity of 50 kW, it is scalable up to the megawatt range
- Up to 150% overdimensioning of PV array
- Six independent MPP trackers guarantee optimal energy production for every use, even in shade
Saving costs: GP protection included- Standards-compliant grid and PV system protection (GP protection) in accordance with VDE-AR-N-4105
- No external tie switch needed
- Significantly lower capital expenditure
Smart Inverter Screen provides fast commissioning and saves time and money- One-click commissioning: scan the QR code and access the Smart Inverter Screen via WLAN
- No need to waste time entering login details
- “Captive Portal” enables direct access to the home page of the Commissioning Wizard
Consistently integrated concept- Low balance of system (BoS) costs, simple project processes and low material expenses
- Twelve direct string inputs, DC disconnector and optional AC and DC surge protection
OptiCool™ active cooling system
- SMA’s intelligent OptiCool™ cooling system is reliable and ensures maximum energy production, even in challenging conditions
- Has proved its worth in over 75 GW of installed power worldwide
- Safe investment in solar
- Lower service cost
Ease and comfort with SMA Smart Connected
- Free automatic inverter monitoring
- Proactive communication in the event of malfunction
- Simplified logistics thanks to automatic replacement service
- Shorter and plannable servicing
Fast installation and grid integration
Cutting-edge configuration and communication with the SMA online assistant and SMA Web browser access via WLAN with any mobile device. Two Ethernet ports with ModBus® TCP (including SunSpec) ensure smooth communication even in large-scale PV plants.
Additional information
| Weight | 84 kg |
|---|---|
| Dimensions | 56.90 × 73.30 × 62.10 cm |
Brand
SMA
For 40 years, SMA has been setting technological trends and driving the development of renewable energies. As a leading global specialist in photovoltaic system technology, SMA is setting the standards today for the decentralized, digital and renewable energy supply of tomorrow.
